Qbic relay

The Qbic relay can be used to control equipment such as door lock and light. Followings are the installation steps of connect AC-500 relay to Qbic FHD-100.

Demonstration Video​

Installation Steps​

For first time boot-up​

  1. After boot-up the device, set-up the Wifi Networking and timezone in configuration screen on start-up first.

Set-up content​

  1. After turning on the device, in the content field in configuration screen on start-up, enter the server address + /qbic, e.g.
  • https://company.bookings.one/qbic
  • http://192.168.0.100/qbic
  1. Click Save and Play button, then the device will then enter the Qbic controller screen and will load Qbic controller when it start-up.
Get back to setting page

If you want to get to the setting page, please tap the right bottom corner until the panel back to the setting page.

Connect to server​

Create Access Token​

  1. Go to Management console -> Settings -> API authentication
  2. Click Add button.
  3. Input a name.
  4. Click Save button.
  5. Click OK and copy the access token.

Setup Access Token​

  1. Go to Setting of Qbic controller.
  2. Input the access token to the Access Token field.
  3. Click Save settings

Relay setting​

Select setting type​

There are two setting types:

  • Control relay over all usb port: This setting allows you to apply same setting to all boards.
  • Control relay by board-id separately: This setting allows you to assign resources to each relay by Board ID separately.

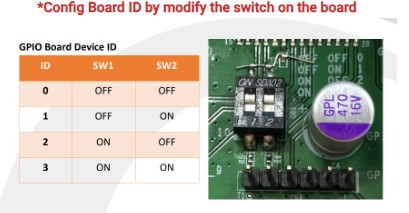

You can configure the Board ID of the relay by modify the switch on the board

Set resources​

  1. After you select the setting type, you need to set a resource to the board.
  2. Then, you need to select the trigger condition:
    • Trigger relay when resource are waiting check-in or using
    • Trigger relay only when resource are using
    • Trigger relay when resource are waiting check-in
    • Trigger relay when resource are preparation
  3. Finally, you need to select the ON/OFF behavior:
    • Relay 1 and 2 ON when trigger
    • Relay 1 and 2 OFF when trigger
    • Relay 1 ON, Relay 2 OFF when trigger
    • Relay 1 OFF, Relay 2 ON when trigger
  4. Click Save button to finish the setting.

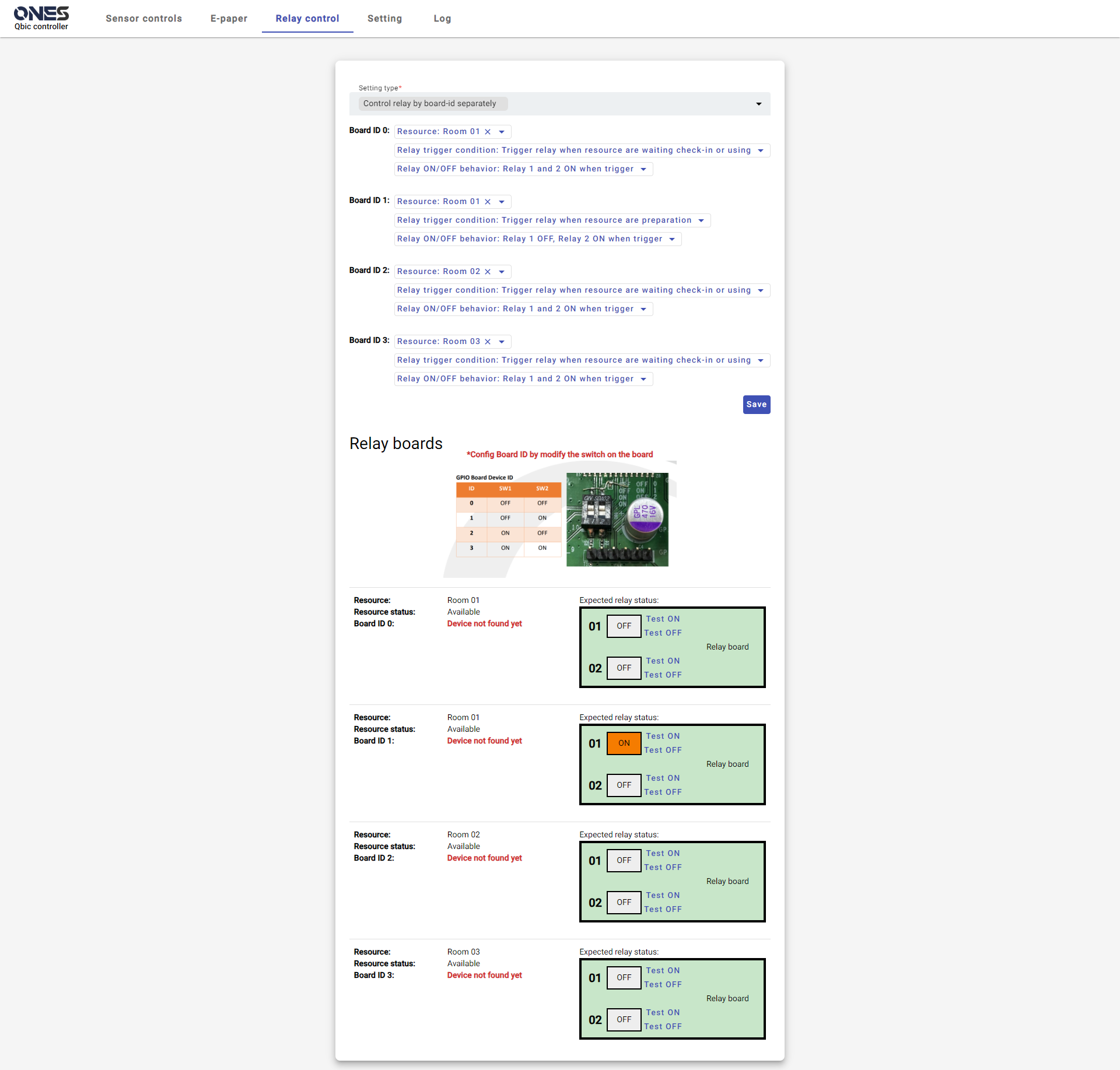

Qbic relay setting
